Note: All references to left or right will be from the riders view.

1. Pull off the electrical connections from the two existing horns. Using electrical tape, tape the ends of the right connection and store the wires out of sight as they will no longer be needed.
2. Remove the left horn. This will facilitate the removal of the horn bracket.
3. Remove the horn bracket. Access to the two bracket screws can be seen from a hole in the frame just under the headlight. Use a 10mm socket with an extension and ratchet . Save one of the bracket screws to be used later to mount the compressor.
4. Prepare the compressor for mounting. Place the air hose over the air nozzle of the compressor. The air nozzle is the two inch long metal tube on the side of the compressor. Use needle nose pliers to help mount the hose as high a possible. Place the stainless steel cover over the air hose and secure it with the clamp provided. Place the clamp as high as possible.
5. Prepare the compressor mounting screw. From the inside of the frame insert the saved bracket screw in the old horn bracket hole on the left side. From the front loosely fasten the screw with a locking washer and nut. You will need to purchase the nut and washer, they are not included.

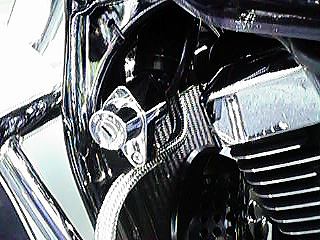

6. Mount the compressor. From inside the frame place the U shaped connection on the upper side of the compressor over the screw and tighten the nut on the front. Place the compressor at a 45 degree angle. This will make it easier to see and get at the electrical connections.
7. Make the electrical connections. Using the old left horn wires place the connections over the proper leads under the compressor. The solid black wire is positive (+) and the black/white wire is negative (-). If you can't see or forgot which connection under the compressor is positive and which is negative, the connection on the air hose side should be negative.
8. Test the system. Because the horn goes through the starter solenoid the bike must be started to use the horn. Press the horn button and check to see if air comes out of the air hose. If the hose is sucking in air you have the electrical connections backwards.

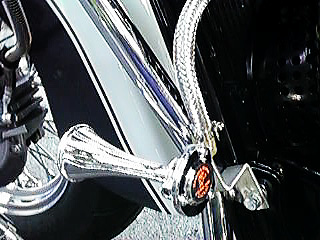

9. Mount the horn to the bracket. Using the brass hose connection L shaped screw mount the horn to one end of the steel bracket provided. It may be necessary to use a washer if it does not go in far enough.

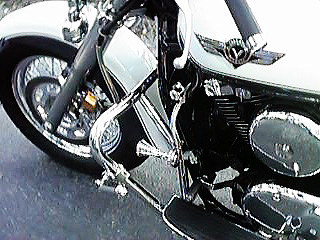

10. Mount the bracket to the bike. On the left side of the bike on the lower frame just forward of the forward shift knob is a screw to which the bracket can be mounted. If you have Kawasaki's freeway bars this is the frame screw to which it is mounted. Also you can purchase at any Harley dealership a chrome clamp 1 1/4 inch which will mount on the freeway bars on to which, with a little work, you can mount the horn. Those are only two of the horn mounting places I know of there may be more.
11. Cut the air hose to lengthen and connect it to the horn.

---
